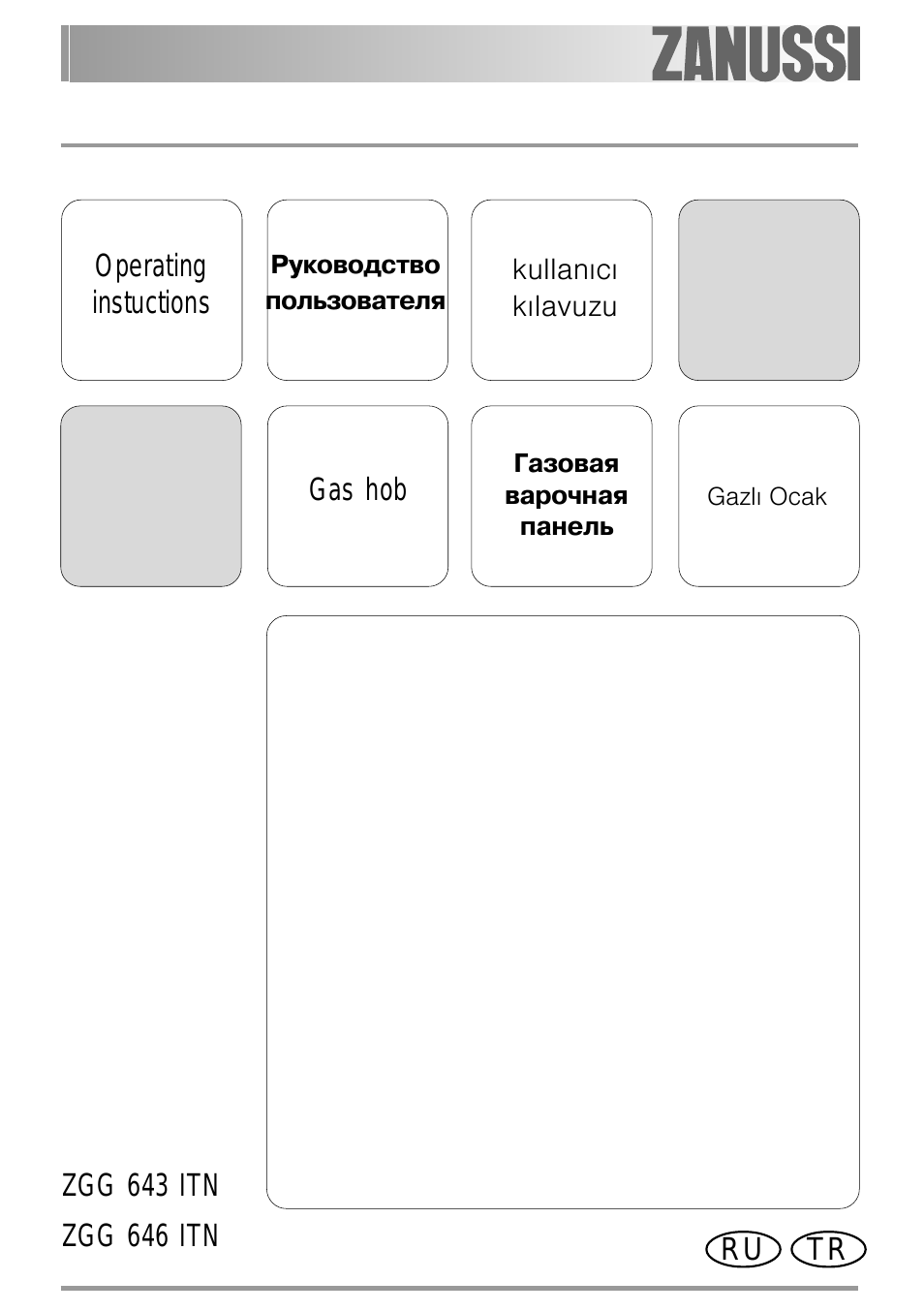

Zanussi ZGG 646 ITN: Instruction manual and user guide in Russian

Газовая

варочная

панель

Руководство

пользователя

ZGG 643

ITN

ZGG 646

ITN

Operating

instuctions

Gas hob

Gazlý Ocak

kullanýcý
kýlavuzu

TR

RU

2

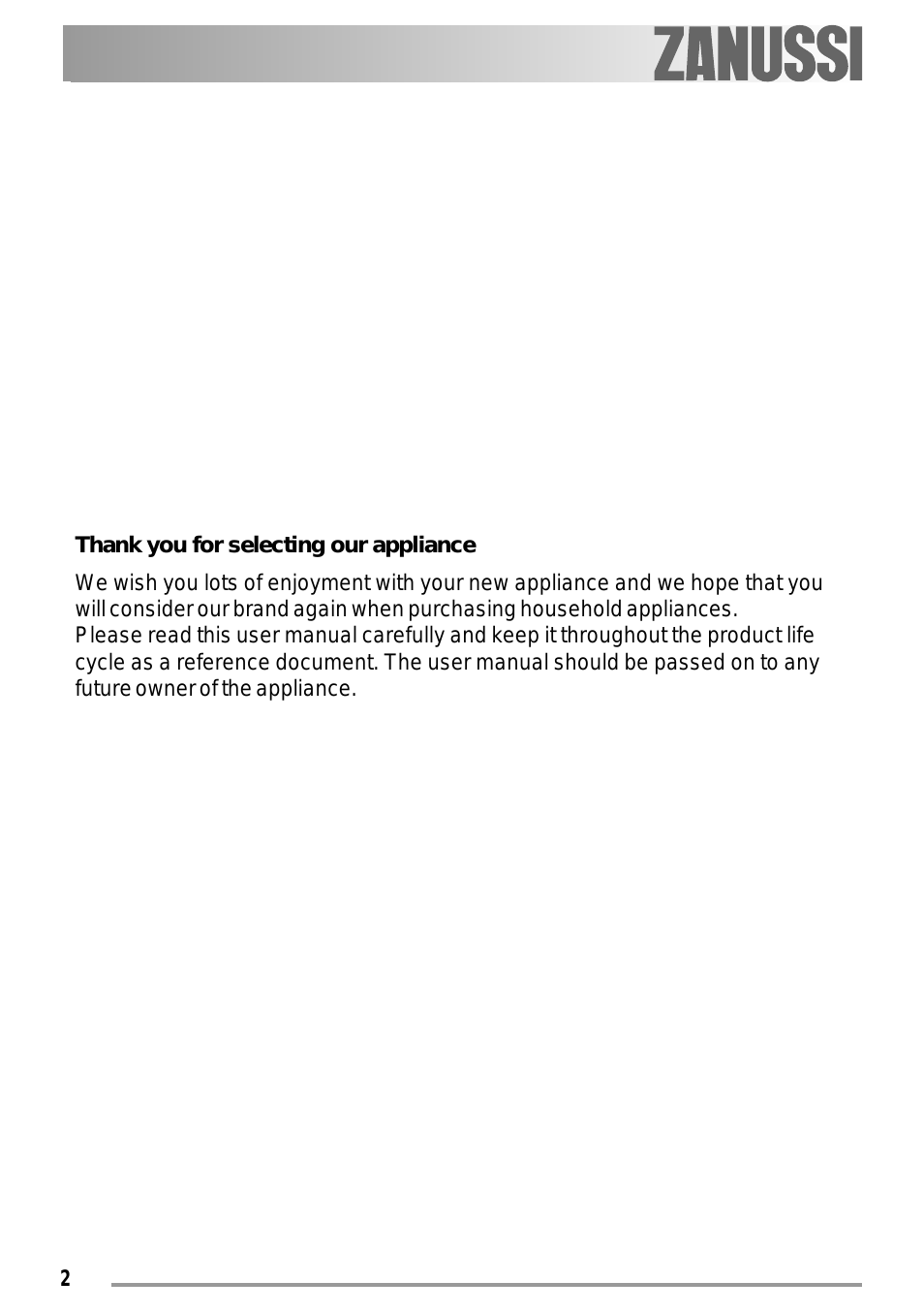

Thank you for selecting our appliance

We wish you lots of enjoyment with your new appliance and we hope that you
will consider our brand again when purchasing household appliances.
Please read this user manual carefully and keep it throughout the product life
cycle as a reference document. The user manual should be passed on to any
future owner of the appliance.

3

This appliance is manufactured according to the following EEC directives:

2006/95 EEC - 93/68 EEC - 89/336 EEC - 90/396 EEC, current edition.

Guide to Use the instructions

The following symbols will be found in the text to guide you throughout the Instructions:

Safety Instructions

Step by step instructions for an operation

Hints and Tips

Environmental Information

)

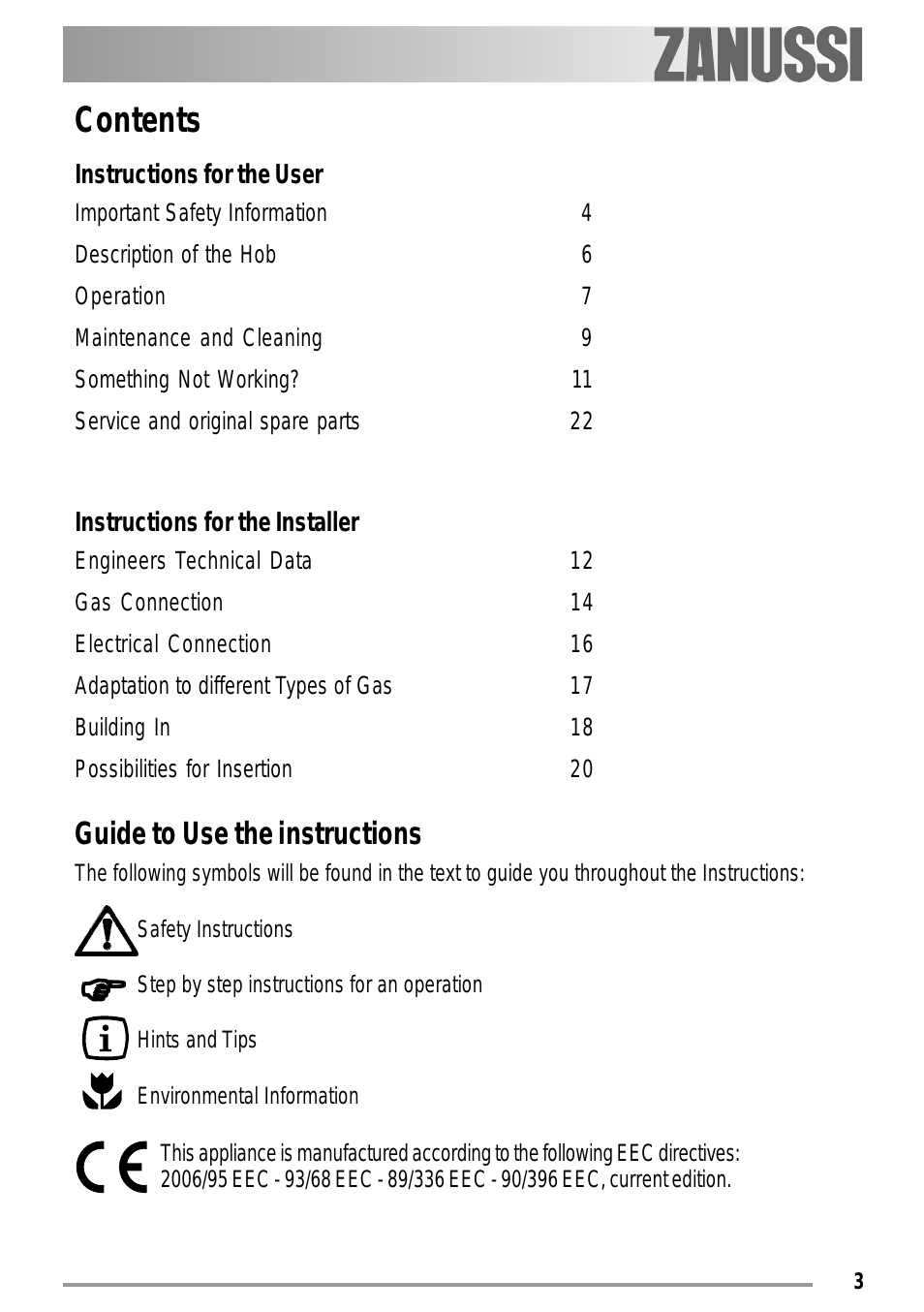

Contents

Instructions for the User

Important Safety Information

4

Description of the Hob

6

Operation

7

Maintenance and Cleaning

9

Something Not Working?

11

Service and original spare parts

22

Instructions for the Installer

Engineers Technical Data

12

Gas Connection

14

Electrical Connection

16

Adaptation to different Types of Gas

17

Building In

18

Possibilities for Insertion

20

4

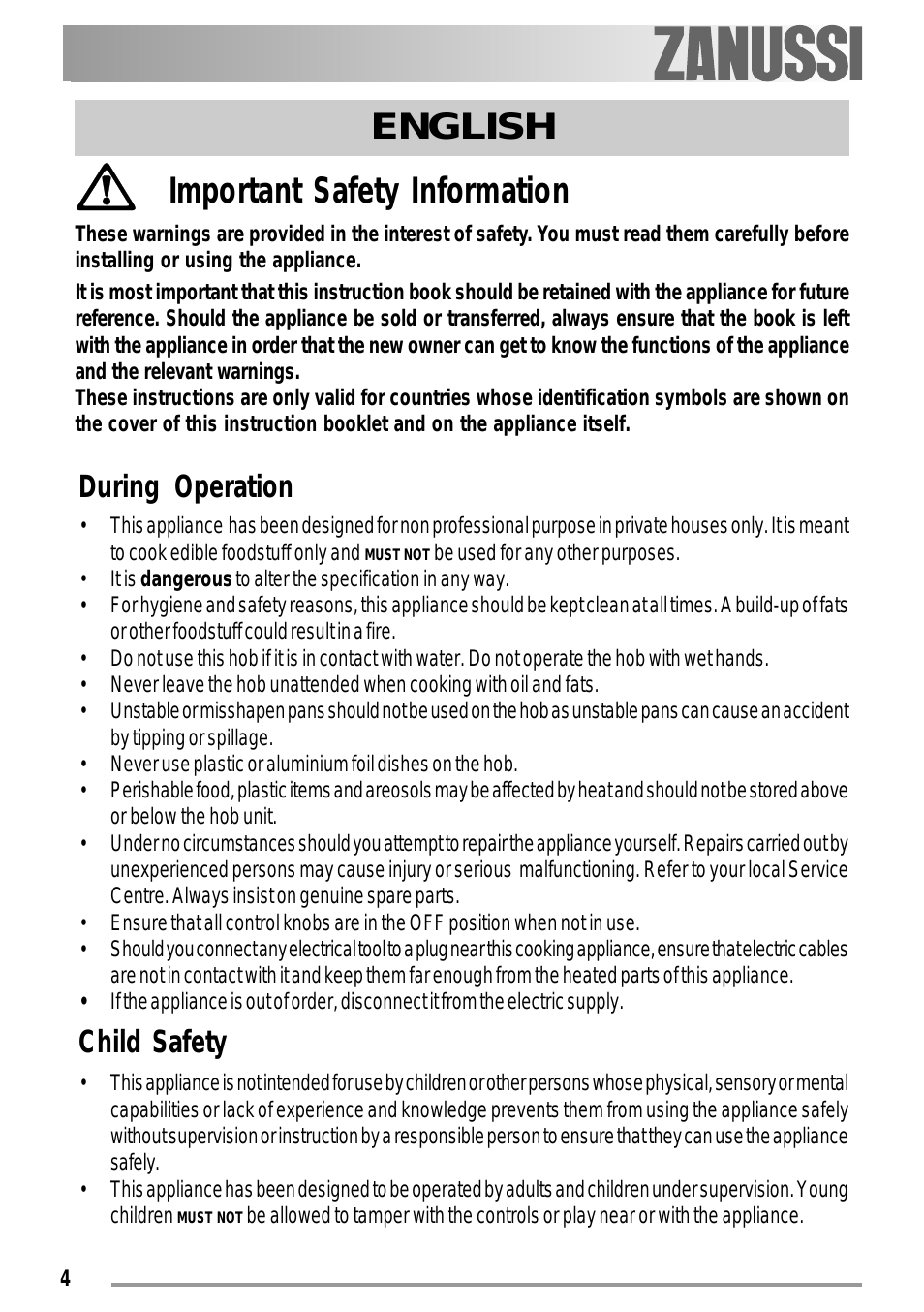

During Operation

• This appliance has been designed for non professional purpose in private houses only. It is meant

to cook edible foodstuff only and

MUST

NOT

be used for any other purposes.

• It is dangerous to alter the specification in any way.
• For hygiene and safety reasons, this appliance should be kept clean at all times. A build-up of fats

or other foodstuff could result in a fire.

• Do not use this hob if it is in contact with water. Do not operate the hob with wet hands.
• Never leave the hob unattended when cooking with oil and fats.
• Unstable or misshapen pans should not be used on the hob as unstable pans can cause an accident

by tipping or spillage.

• Never use plastic or aluminium foil dishes on the hob.
• Perishable food, plastic items and areosols may be affected by heat and should not be stored above

or below the hob unit.

• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by

unexperienced persons may cause injury or serious malfunctioning. Refer to your local Service
Centre. Always insist on genuine spare parts.

• Ensure that all control knobs are in the OFF position when not in use.
• Should you connect any electrical tool to a plug near this cooking appliance, ensure that electric cables

are not in contact with it and keep them far enough from the heated parts of this appliance.

• If the appliance is out of order, disconnect it from the electric supply.

Child Safety

• This appliance is not intended for use by children or other persons whose physical, sensory or mental

capabilities or lack of experience and knowledge prevents them from using the appliance safely
without supervision or instruction by a responsible person to ensure that they can use the appliance
safely.

• This appliance has been designed to be operated by adults and children under supervision. Young

children

MUST

NOT

be allowed to tamper with the controls or play near or with the appliance.

These warnings are provided in the interest of safety. You must read them carefully before
installing or using the appliance.
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred, always ensure that the book is left
with the appliance in order that the new owner can get to know the functions of the appliance
and the relevant warnings.
These instructions are only valid for countries whose identification symbols are shown on
the cover of this instruction booklet and on the appliance itself.

Important Safety Information

ENGLISH

5

• Accessible parts of this appliance may become hot when it is in use. Children should be

KEPT

AWAY

until it has cooled.

• Children can also injure themselves by pulling pans or pots off the hob.

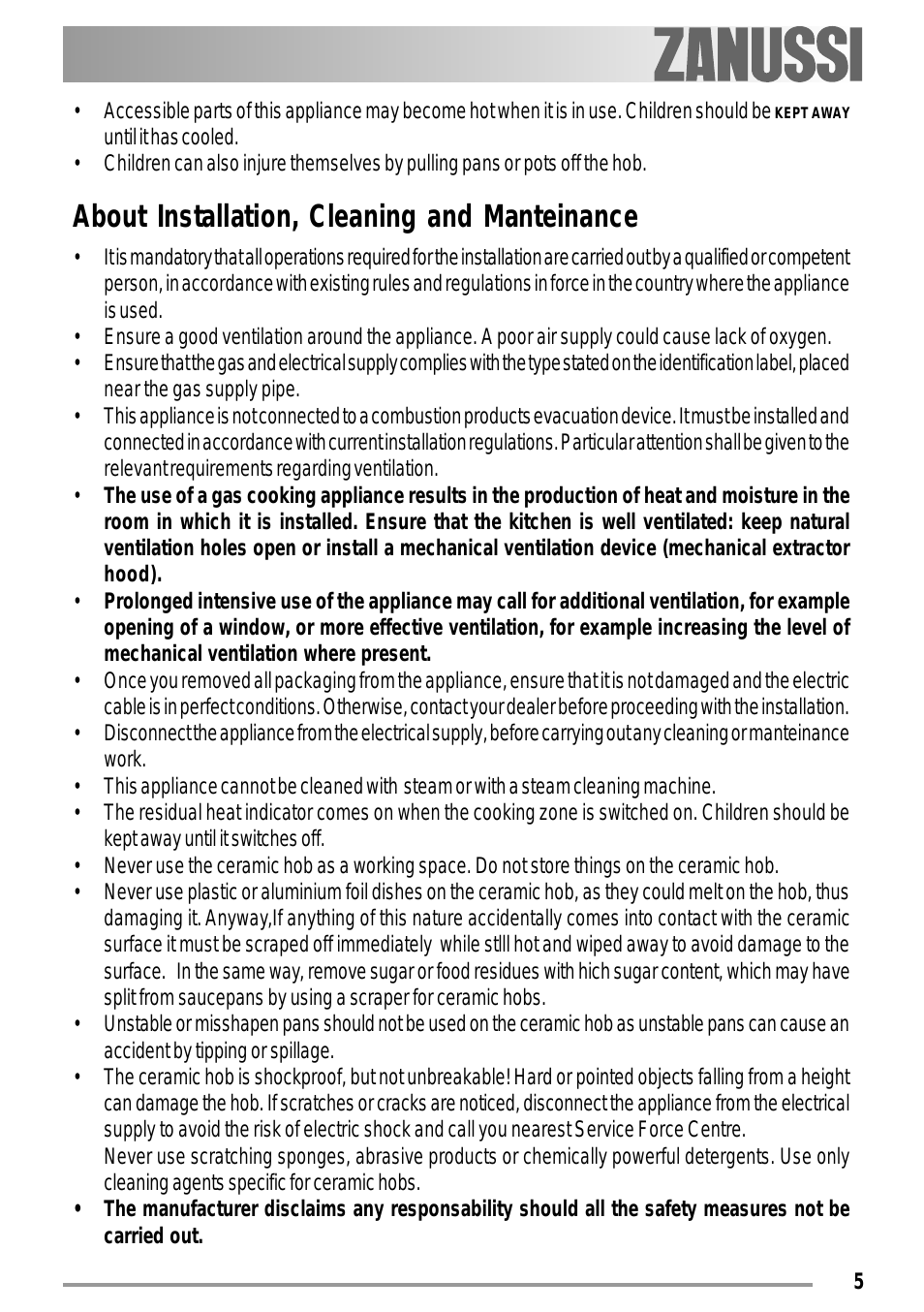

About Installation, Cleaning and Manteinance

• It is mandatory that all operations required for the installation are carried out by a qualified or competent

person, in accordance with existing rules and regulations in force in the country where the appliance
is used.

• Ensure a good ventilation around the appliance. A poor air supply could cause lack of oxygen.
• Ensure that the gas and electrical supply complies with the type stated on the identification label, placed

near the gas supply pipe.

• This appliance is not connected to a combustion products evacuation device. It must be installed and

connected in accordance with current installation regulations. Particular attention shall be given to the
relevant requirements regarding ventilation.

• The use of a gas cooking appliance results in the production of heat and moisture in the

room in which it is installed. Ensure that the kitchen is well ventilated: keep natural
ventilation holes open or install a mechanical ventilation device (mechanical extractor
hood).

• Prolonged intensive use of the appliance may call for additional ventilation, for example

opening of a window, or more effective ventilation, for example increasing the level of
mechanical ventilation where present.

• Once you removed all packaging from the appliance, ensure that it is not damaged and the electric

cable is in perfect conditions. Otherwise, contact your dealer before proceeding with the installation.

• Disconnect the appliance from the electrical supply, before carrying out any cleaning or manteinance

work.

• This appliance cannot be cleaned with steam or with a steam cleaning machine.
• The residual heat indicator comes on when the cooking zone is switched on. Children should be

kept away until it switches off.

• Never use the ceramic hob as a working space. Do not store things on the ceramic hob.
• Never use plastic or aluminium foil dishes on the ceramic hob, as they could melt on the hob, thus

damaging it. Anyway,If anything of this nature accidentally comes into contact with the ceramic
surface it must be scraped off immediately while stlll hot and wiped away to avoid damage to the
surface. In the same way, remove sugar or food residues with hich sugar content, which may have
split from saucepans by using a scraper for ceramic hobs.

• Unstable or misshapen pans should not be used on the ceramic hob as unstable pans can cause an

accident by tipping or spillage.

• The ceramic hob is shockproof, but not unbreakable! Hard or pointed objects falling from a height

can damage the hob. If scratches or cracks are noticed, disconnect the appliance from the electrical
supply to avoid the risk of electric shock and call you nearest Service Force Centre.
Never use scratching sponges, abrasive products or chemically powerful detergents. Use only
cleaning agents specific for ceramic hobs.

• The manufacturer disclaims any responsability should all the safety measures not be

carried out.

6

1. Hob Top

2. Rapid Burner

3. Semi-rapid Burner

4. Auxiliary Burner

5. Control knob for back right burner (semi-rapid)

6. Control knob for back left burner (semi-rapid)

7. Control knob for front left burner (rapid)

8. Control knob for front right burner (auxiliary)

Description of the Hob

1

3

5 6

7 8

2

4

Service

• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by

unexperienced persons may cause injury or serious malfunctioning. Refer to your local Service
Centre. Always insist on genuine spare parts.

Environmental Information

• After installation, please dispose of the packaging with due regard to safety and the environment.
• When disposing of an old appliance, make it unusable, by cutting off the cable.

• The symbol

on the product or on its packaging indicates that this product may not be treated

as household waste. Instead it shall be handed over to the applicable collection point for the recycling
of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information
about recycling of this product, please contact your local city office, your household waste disposal
service or the shop where you purchased the product.

7

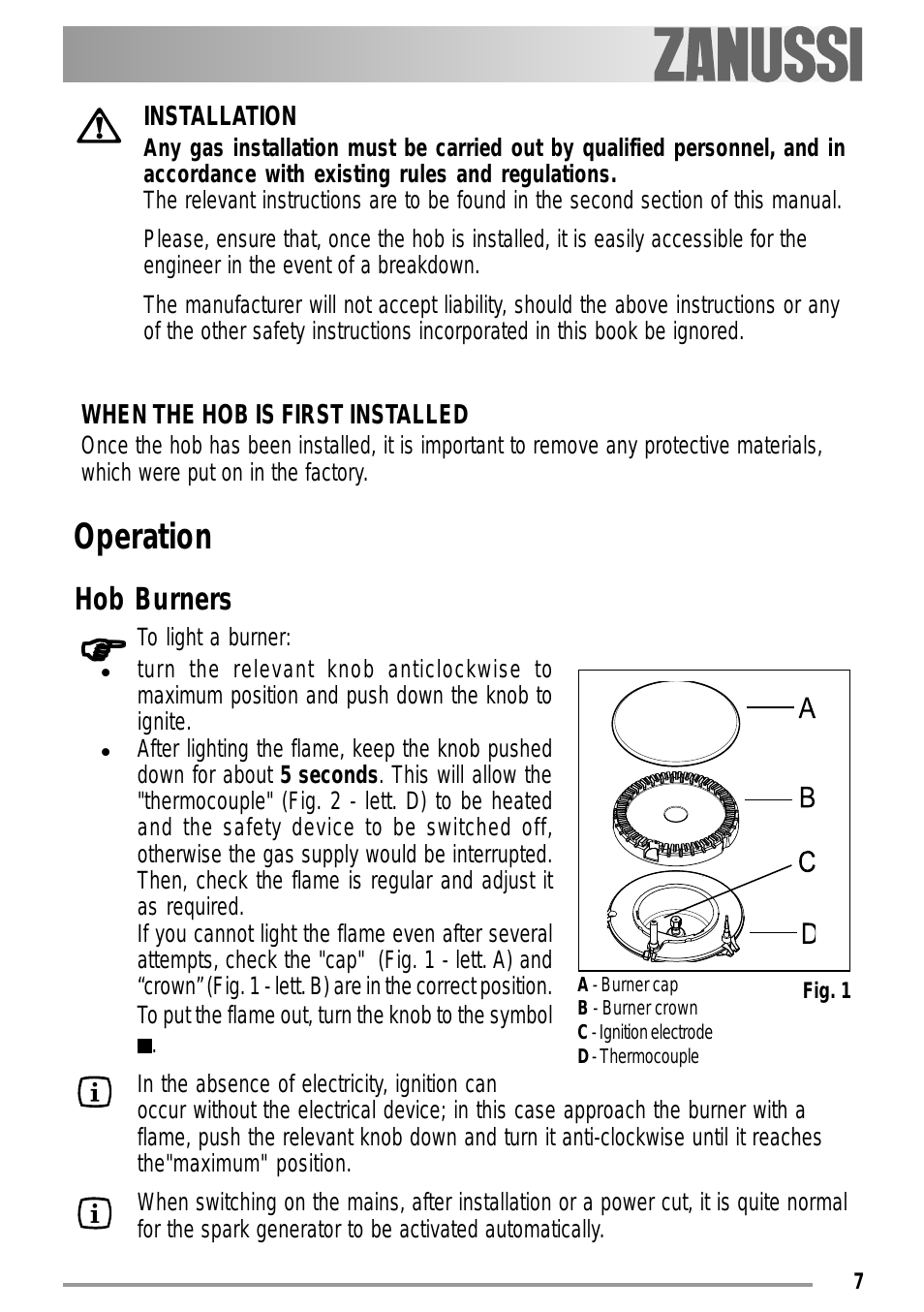

Hob Burners

To light a burner:

z

turn the relevant knob anticlockwise to

maximum position and push down the knob to

ignite.

z

After lighting the flame, keep the knob pushed

down for about 5 seconds. This will allow the

"thermocouple" (Fig. 2 - lett. D) to be heated

and the safety device to be switched off,

otherwise the gas supply would be interrupted.

Then, check the flame is regular and adjust it

as required.

If you cannot light the flame even after several

attempts, check the "cap" (Fig. 1 - lett. A) and

“crown” (Fig. 1 - lett. B) are in the correct position.
To put the flame out, turn the knob to the symbol

.

In the absence of electricity, ignition can

occur without the electrical device; in this case approach the burner with a

flame, push the relevant knob down and turn it anti-clockwise until it reaches

the"maximum" position.
When switching on the mains, after installation or a power cut, it is quite normal

for the spark generator to be activated automatically.

Operation

)

Fig. 1

A - Burner cap
B - Burner crown
C - Ignition electrode
D - Thermocouple

INSTALLATION

Any gas installation must be carried out by qualified personnel, and in

accordance with existing rules and regulations.

The relevant instructions are to be found in the second section of this manual.
Please, ensure that, once the hob is installed, it is easily accessible for the

engineer in the event of a breakdown.
The manufacturer will not accept liability, should the above instructions or any

of the other safety instructions incorporated in this book be ignored.

WHEN THE HOB IS FIRST INSTALLED

Once the hob has been installed, it is important to remove any protective materials,

which were put on in the factory.

8

Burner

minimum

maximum

diameter

Large (rapid)

160 mm

260 mm

Medium (semi-rapid)

120 mm

220 mm

Small (auxiliary)

80 mm

160 mm

As soon as a liquid starts boiling, turn down the flame so that it will barely keep the liquid
simmering.
Use only pans or pots with flat bottom.
If you use a saucepan which is smaller than the recommended size, the flame will
spread beyond the bottom of the vessel, causing the handle to overheat.
Carefully supervise cooking with fat or oil, since these types of foodstuff can result in a fire,
if over-heated.
Prolonged cooking with potstones, earthenware pans or cast-iron plates is
inadvisable. Also, do not use aluminium foil to protect the top during use.

Make sure pots do not protrude over the edges of the cooktop and that

they are centrally positioned on the rings in order to obtain lower gas

consumption.
Do not place unstable or deformed pots on the rings: they could tip

over or spill their contents, causing accidents.
Pots must not enter the control zone.
If the control knobs become difficult to turn, please contact your local Service

Force Centre.

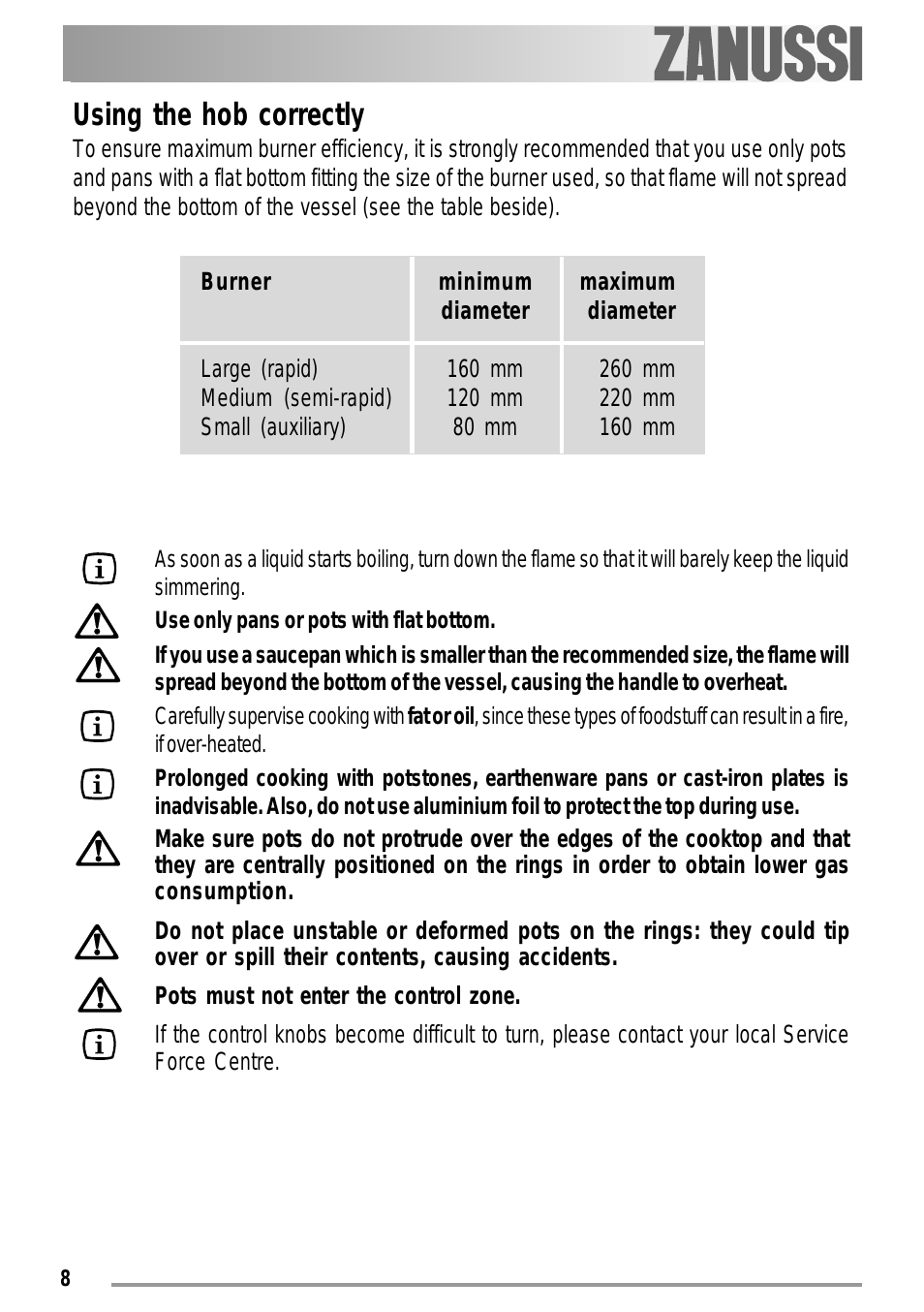

Using the hob correctly

To ensure maximum burner efficiency, it is strongly recommended that you use only pots
and pans with a flat bottom fitting the size of the burner used, so that flame will not spread
beyond the bottom of the vessel (see the table beside).

9

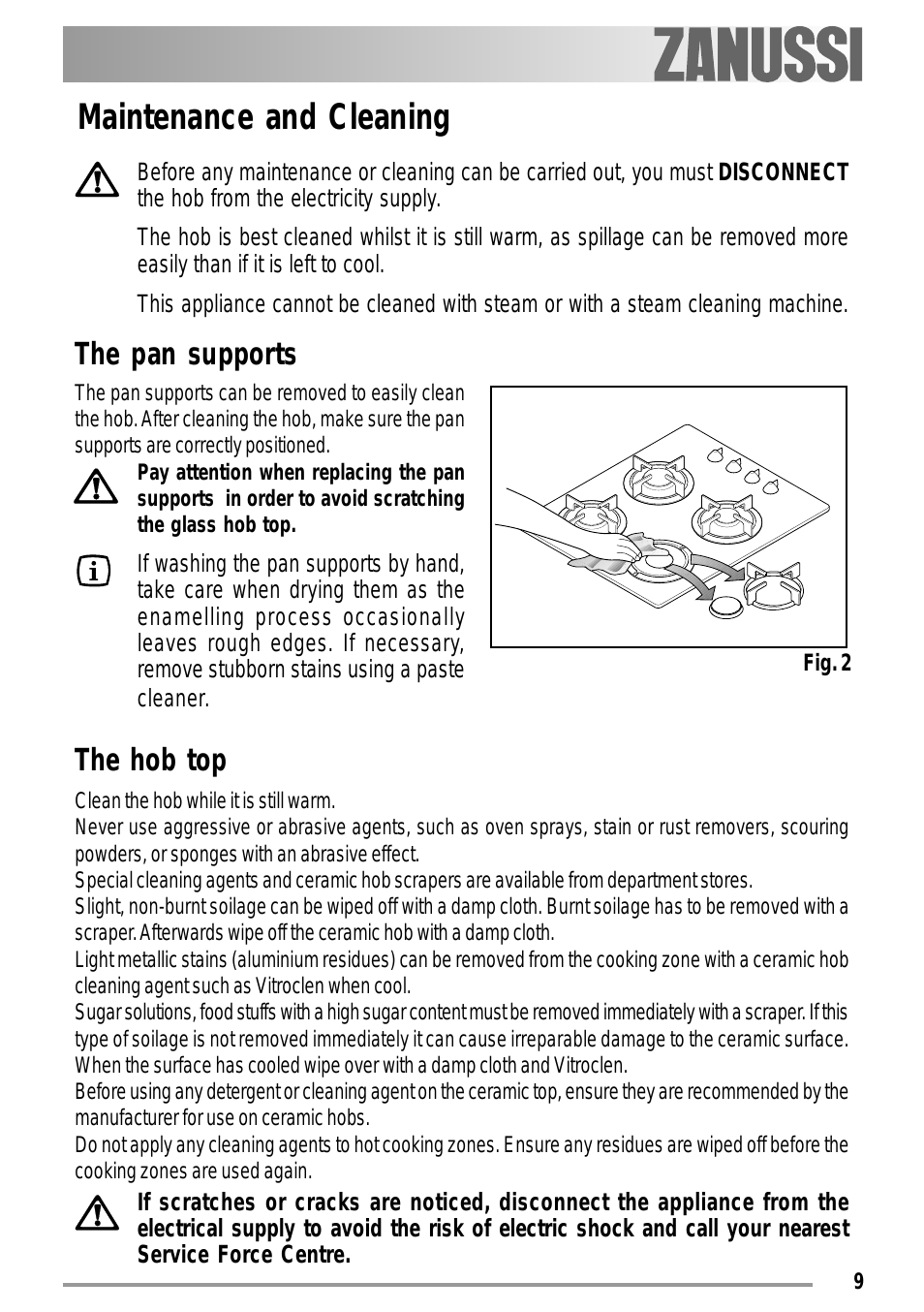

Before any maintenance or cleaning can be carried out, you must DISCONNECT

the hob from the electricity supply.
The hob is best cleaned whilst it is still warm, as spillage can be removed more

easily than if it is left to cool.
This appliance cannot be cleaned with steam or with a steam cleaning machine.

The pan supports

The pan supports can be removed to easily clean
the hob. After cleaning the hob, make sure the pan
supports are correctly positioned.

Pay attention when replacing the pan
supports in order to avoid scratching
the glass hob top.

If washing the pan supports by hand,

take care when drying them as the

enamelling process occasionally

leaves rough edges. If necessary,

remove stubborn stains using a paste
cleaner.

The hob top

Clean the hob while it is still warm.
Never use aggressive or abrasive agents, such as oven sprays, stain or rust removers, scouring
powders, or sponges with an abrasive effect.
Special cleaning agents and ceramic hob scrapers are available from department stores.
Slight, non-burnt soilage can be wiped off with a damp cloth. Burnt soilage has to be removed with a
scraper. Afterwards wipe off the ceramic hob with a damp cloth.

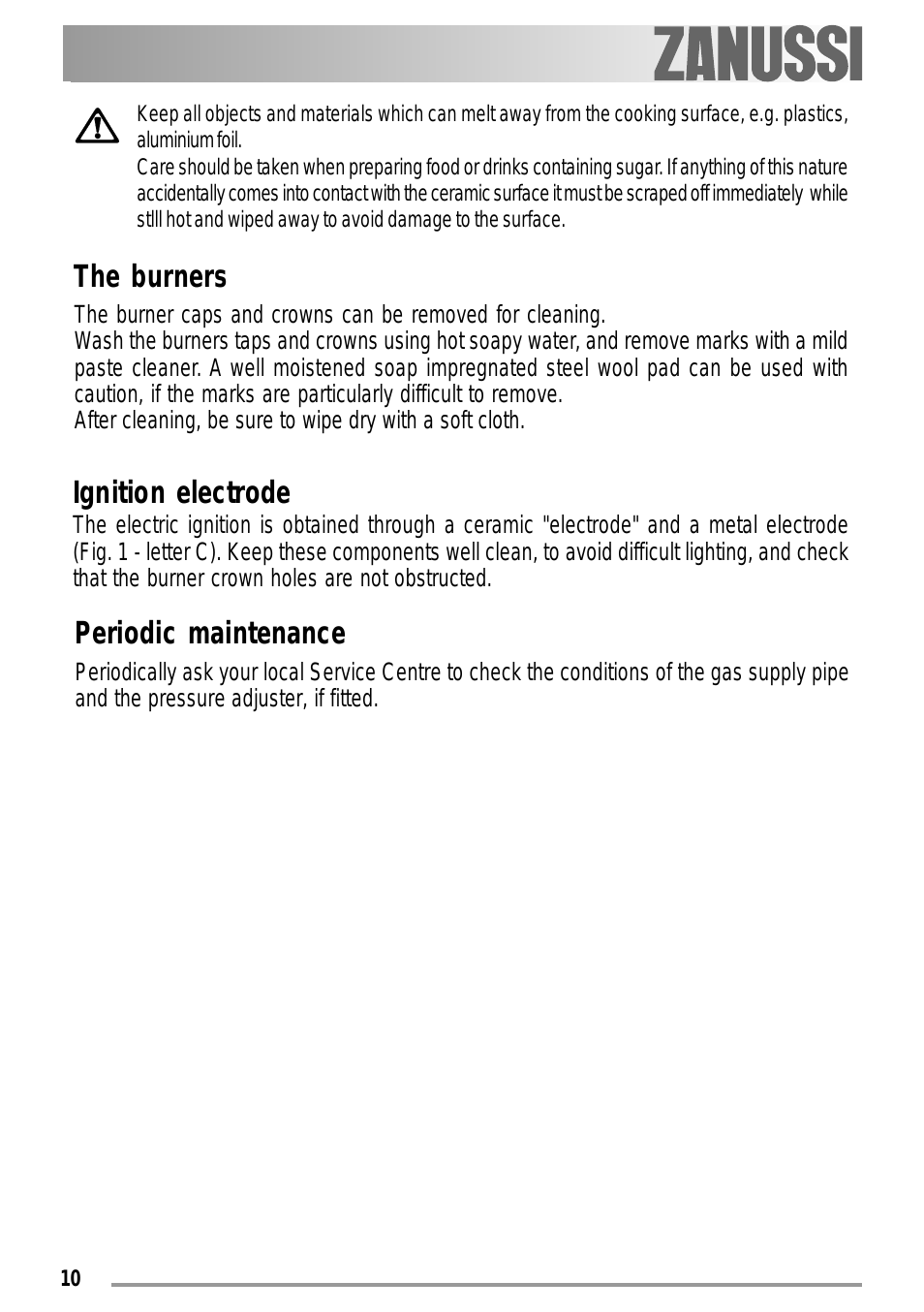

Light metallic stains (aluminium residues) can be removed from the cooking zone with a ceramic hob
cleaning agent such as Vitroclen when cool.
Sugar solutions, food stuffs with a high sugar content must be removed immediately with a scraper. If this
type of soilage is not removed immediately it can cause irreparable damage to the ceramic surface.
When the surface has cooled wipe over with a damp cloth and Vitroclen.
Before using any detergent or cleaning agent on the ceramic top, ensure they are recommended by the
manufacturer for use on ceramic hobs.
Do not apply any cleaning agents to hot cooking zones. Ensure any residues are wiped off before the
cooking zones are used again.

If scratches or cracks are noticed, disconnect the appliance from the

electrical supply to avoid the risk of electric shock and call your nearest

Service Force Centre.

Maintenance and Cleaning

Fig. 2

10

Periodic maintenance

Periodically ask your local Service Centre to check the conditions of the gas supply pipe

and the pressure adjuster, if fitted.

Ignition electrode

The electric ignition is obtained through a ceramic "electrode" and a metal electrode

(Fig. 1 - letter C). Keep these components well clean, to avoid difficult lighting, and check

that the burner crown holes are not obstructed.

Keep all objects and materials which can melt away from the cooking surface, e.g. plastics,
aluminium foil.
Care should be taken when preparing food or drinks containing sugar. If anything of this nature
accidentally comes into contact with the ceramic surface it must be scraped off immediately while
stlll hot and wiped away to avoid damage to the surface.

The burners

The burner caps and crowns can be removed for cleaning.

Wash the burners taps and crowns using hot soapy water, and remove marks with a mild

paste cleaner. A well moistened soap impregnated steel wool pad can be used with

caution, if the marks are particularly difficult to remove.

After cleaning, be sure to wipe dry with a soft cloth.
